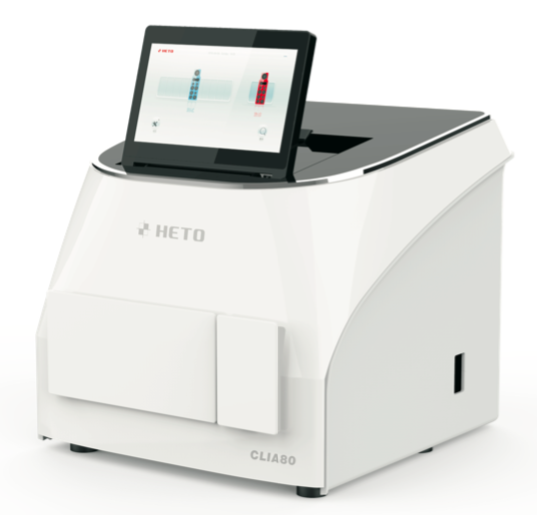

Clia80

More precise ,more fast and more compact

Single-cartridge Chemilumiescence Immunoassay System

SPECIAL FEATURES

Inependent test channels, same or different parameters can be tested in parallel

Ready-to-use cartridge, no other consumables are needed. Operation friendly.

Samples can be whole blood ,plasma, serum

No fluidic connection ,no water source is necessary ,Maintain free .

TECHNICAL SPECIFICATIONS

Throughput : Up to 13 samples/parameters per run, different parameters can be tested at the same time .

Measuring time: Fastest 10 minutes

Speimen: Whole blood , plasma ,serum

Measuring principle: AP system (Glow chemiluminescence)

Reaction temperature :37°C

Sample volume: Plama or Serum 60 ul,Whole blood 100 ul.

Data storage : 100,000 including patient data,QC data,CAL data.

Data transfer: LIS,Wifi,Bluetooth

Weight: 46kg

Dimension:579mm x 520mm x 485mm

Voltage requirements: 100-240V AC(50/60Hz)

Power consumption: 400VA

Monitor /keyboard: 12 inch LCD touch-screen

Printer: Integrated

PC: Integrated

Barcoder reader: Integrated

Interface: USB and Ethernet Port

Calibration: Factory Calibration,2-point calibration every 4 weeks
